- Axle system: 12mm Thru Axle
- Weight [g]: 19
- Compatibility: All DT SWISS MTB Star Ratchet hubs
- Converts: All DT SWISS Star Ratchet MTB hubs (180, 240s, 340, 350) and most OEM brands using DT SWISS Ratchet internals (Giant, Syncros, Roval et al) with Shimano freehub to the 142mm, 157mm or 197mm MTB thru axle standards.
- Refer to our DT SWISS FAQ page for end cap solution charts with full list of convertible hubs and wheels

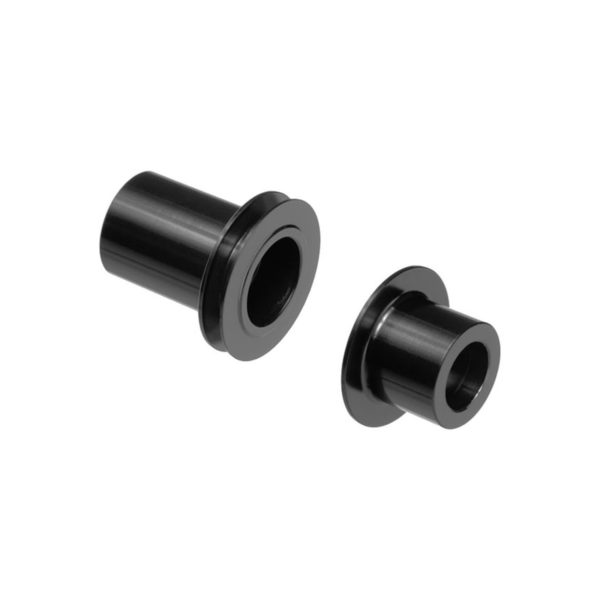

DT SWISS 12mm End Caps For Shimano MTB Hubs
Rear hub end caps used on DT SWISS Star Ratchet hubs for 12x142mm, 12x157mm or 12x197mm spacing with Shimano HG freehub.
Fits Boost/148mm hubs but DOES NOT convert a 142mm/std hub to boost – these hubs just share the same end caps!
12mm x 142mm, 12mm x 157mm, 12mm x 197mm
