- Axle system: 12mm Thru Axle
- Weight [g]: 18.4
- Compatibility: DT SWISS Star Ratchet hubs
- Converts: All DT SWISS Star Ratchet hubs (180, 240s, 340, 350) and most OEM brands using DT SWISS Ratchet internals (Giant, Syncros, Roval et al) with SRAM XD freehub to the 142mm, 157mm or 197mm MTB thru axle standards.
- Refer to our DT SWISS FAQ page for end cap solution charts with full list of convertible hubs and wheels

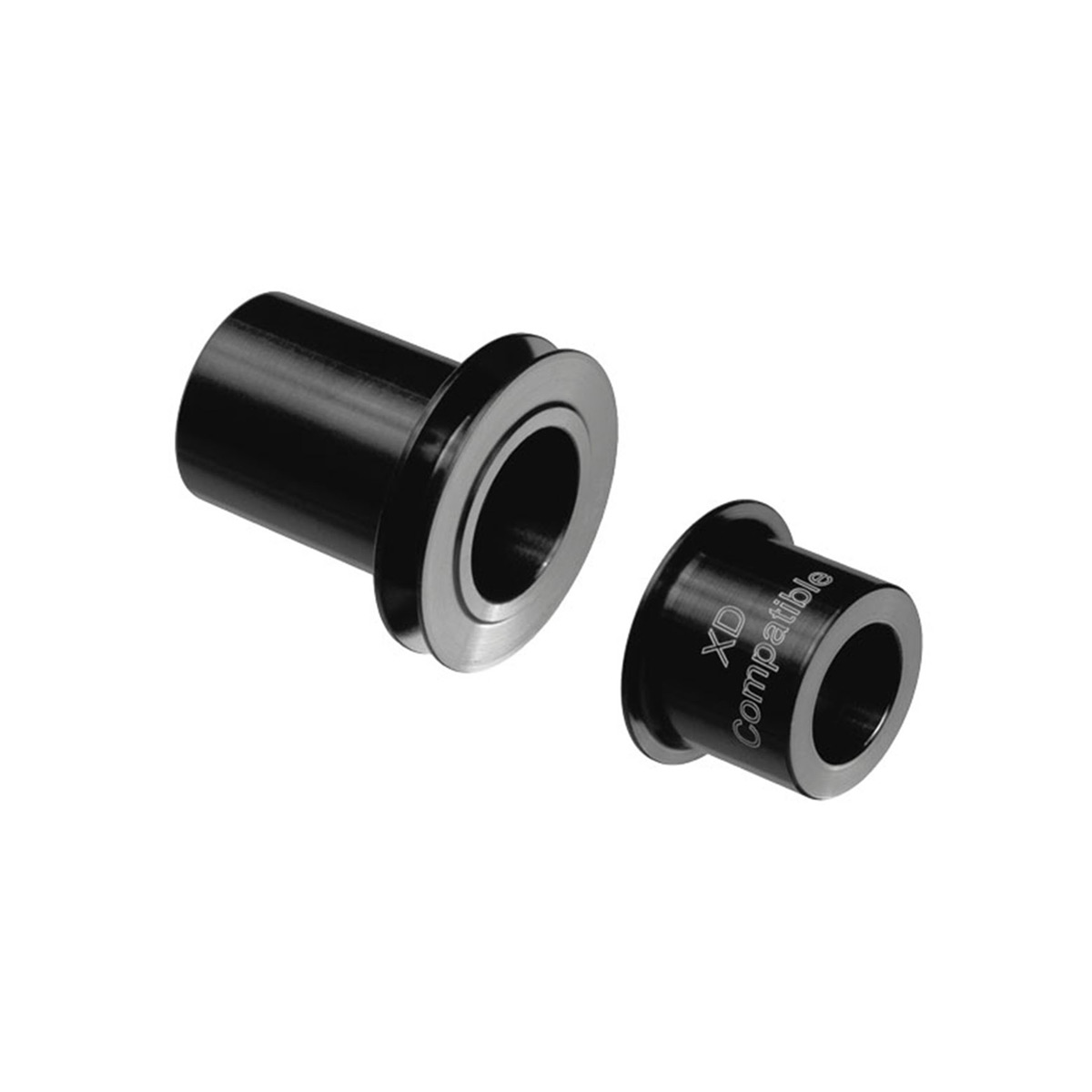

DT SWISS 12mm End Caps For SRAM XD Hubs
Rear hub end caps used on DT SWISS Star Ratchet hubs for 12x142mm, 12x157mm or 12x197mm spacing with SRAM XD freehub.
Fits Boost/148mm hubs but DOES NOT convert a 142mm/std hub to boost – these hubs just share the same end caps!
12mm x 142mm, 12mm x 148mm, 12mm x 157mm, 12mm x 197mm
You may also like…
Freehubs, Wheel Accessories
DT SWISS SRAM XD Freehub For Star Ratchet Hubs
Replacement SRAM XD freehub for DT Swiss Star Ratchet equipped hubs
If you require the matching end cap for drive train conversions:
- Scroll down to product Description below
- Click on the tab labeled “Accessories”
- Select which end cap you need with a blue check mark
- Click on “add all to cart” on the right
DT SWISS 12/142mm RWS With 1.5 Thread Pitch
Ratcheting Wheel Mounting System (RWS) with 1.5 thread pitch for 12x142mm hubs. The RWS system secures wheels safely, quick and with unrivalled clamping force. These fine skewers are manufactured completely out of aluminium, featuring a forged lever as well as machined and anodized axles. Finally, the finish quality is a prime example of Swiss precision, just like you would expect from DT Swiss.
After having been ahead of its time when introduced back in 2005, the RWS has become one of the standard axle systems. And for good reason. As riders ride harder, on rougher terrain and on bikes allowing for speeds never attained before, every bike has to have a reliable wheel mounting system.SKU: HWQASM00S2016S
