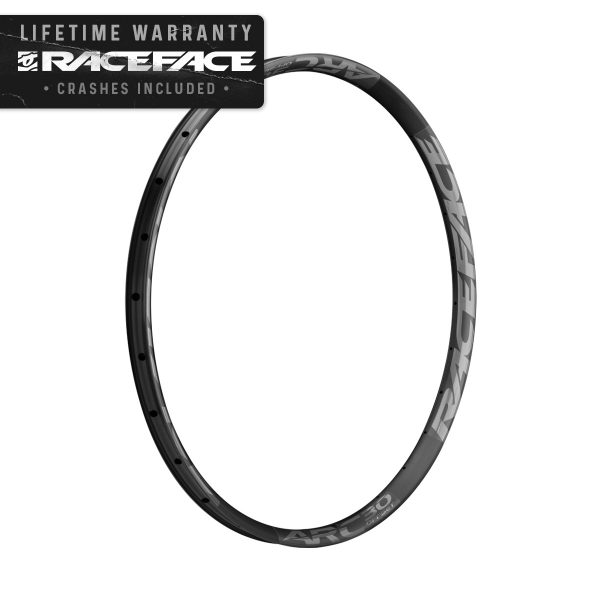

Race Face ARC Offset Rims
In stock
With a redesigned rim profile, the new ARC Offset rims utilise an asymmetrical design to optimise spoke tension balance, wheel durability and wheel stiffness. New 6069 Alloy provides a superior strength to weight ratio over our previous generation of ARC, significantly improving toughness. And now with our new 30mm wide Heavy Duty rim at 22mm deep, we have a rim size and width option for every tire and every riding style. Our tubeless ready bead and offset design mean these rims are ready to hit any trail with confidence. Complete your custom setup with colour-matching decals available in eight colour options. Decal kits sold separately.
R2,295.00
ComparePlease Note: We must insist you use nipple washers on all Race Face ARC rims to complete the wheel build.
FEATURES
- Sizes from 25mm to 40mm internal width
- Tubeless ready, strong tire retention bead
27.5 ” TUBELESS READY
- RIM WEIGHT 25mm – 418g, 30mm – 484g, 35mm – 520g
- FINISH BRUSHED BLACK ANODIZE / VINYL DECALS
- TYPE TUBELESS READY CLINCHER(tape and valve kit sold separately)RIM MATERIAL 6069 HIGH STRENGTH ALLOY
- RIM DEPTH 20mm, 22mm Heavy Duty
- RIM OFFSET 4.5mm
- INTERNAL RIM WIDTH 25mm, 30mm, 35mm
- EXTERNAL RIM WIDTH 29mm, 34mm, 39mm
- SPOKE HOLES 32, 28
- RIM ERD 562mm (25-40mm)
- MAX SPOKE TENSION 122KGF / 1200N
29″ TUBELESS READY
- WHEEL SIZE 29″
- RIM WEIGHT 25mm – 445g, 30mm – 525g, 35mm – 553g
- FINISH BRUSHED BLACK ANODIZE / VINYL DECALS
- TYPE TUBELESS READY CLINCHER(tape and valve kit sold separately)
- RIM MATERIAL 6069 HIGH STRENGTH ALLOY
- RIM DEPTH 20mm, 22mm Heavy Duty
- RIM OFFSET 4.5mm
- INTERNAL RIM WIDTH 25mm, 30mm, 35mm
- EXTERNAL RIM WIDTH 29mm, 34mm, 39mm
- SPOKE HOLES 32, 28
- RIM ERD 600mm (25-40mm)
- MAX SPOKE TENSION 122KGF /
